MC II series safety light curtain
characteristic：◆Specialdesign,multiplefixingmethods,convenientandfastinstallation；◆Compactappearance,savingmoreinstallationspace；◆Comprehensiveselfinspectionfunction；◆Strongresistancetoelectromagnetic...
characteristic：

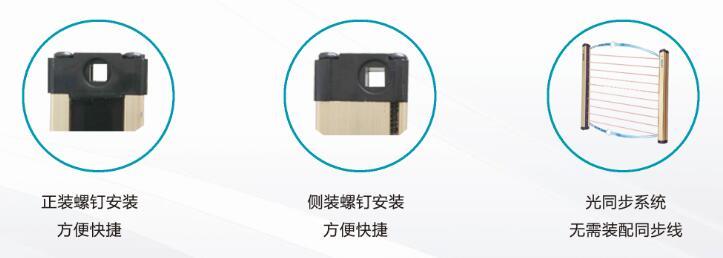

◆Special design, multiple fixing methods, convenient and fast installation；
◆Compact appearance, saving more installation space；
◆Comprehensive self inspection function；
◆Strong resistance to electromagnetic and optical interference；
◆Strong vibration resistance, superior waterproof and dustproof performance；
◆LED indicates working and fault status；
◆Optical synchronization technology, simple wiring, saves installation time.
Technical parameters:
| protective length | 0-3500mm |
| protection height | Optical axis spacing× (Number of beams -1) |
| Beam pitch | 10mm,20mm,40mm |
| check the accuracy | 19mm,29mm,49m |
| Working power supply | DC12V～24V |
| Working current | <200mA |
| LOAD | <200mA |
| response time | <20ms |
| security level | PL c (EN ISO 13849) |
| protection grade | IP65 |
| operation temperature | –10°C ～ +55°C |
| ambient humidity | 20°C, RH ≤85% |
| Anti light interference | 10000Lux (incident angle≥5°) |
| Anti vibration | Frequency: 10-55Hz, amplitude: 0.35mm |
| Impact resistance | 10g, 16ms, X, Y, Z axes, 1000 times per axis |
?
Model Selection Table：
| Beam pitch?10mm | Beam pitch?20mm | Beam pitch40mm | |||||||||
| specifications | light beam | H | L | specifications | light beam | H | ?L | specifications | light beam | H | L |
| MCⅡ1610 | 16 | 150 | 197 | MCⅡ0820 | 8 | 140 | 182 | MCⅡ0440 | 4 | 120 | 182 |
| MCⅡ2410 | 24 | 230 | 277 | MCⅡ1220 | 12 | 220 | 262 | MCⅡ0640 | 6 | 200 | 262 |
| MCⅡ3210 | 32 | 310 | 357 | MCⅡ1620 | 16 | 300 | 342 | MCⅡ0840 | 8 | 280 | 342 |
| MCⅡ4010 | 40 | 390 | 437 | MCⅡ2020 | 20 | 380 | 422 | MCⅡ1040 | 10 | 360 | 422 |
| MCⅡ4810 | 48 | 470 | 517 | MCⅡ2420 | 24 | 460 | 502 | MCⅡ1240 | 12 | 440 | 502 |
| MCⅡ5610 | 56 | 550 | 597 | MCⅡ2820 | 28 | 540 | 582 | MCⅡ1440 | 14 | 520 | 582 |
| MCⅡ6410 | 64 | 630 | 677 | MCⅡ3220 | 32 | 620 | 662 | MCⅡ1640 | 16 | 600 | 662 |
| MCⅡ7210 | 72 | 710 | 757 | MCⅡ3620 | 36 | 700 | 742 | MCⅡ1840 | 18 | 680 | 742 |
| MCⅡ8010 | 80 | 790 | 837 | MCⅡ4020 | 40 | 780 | 822 | MCⅡ2040 | 20 | 760 | 822 |
| MCⅡ8810 | 88 | 870 | 917 | MCⅡ4420 | 44 | 860 | 902 | MCⅡ2240 | 22 | 840 | 902 |
| MCⅡ9610 | 96 | 950 | 997 | MCⅡ4820 | 48 | 940 | 982 | MCⅡ2440 | 24 | 920 | 982 |
| MCⅡ10410 | 104 | 1030 | 1077 | MCⅡ5220 | 52 | 1020 | 1062 | MCⅡ2640 | 26 | 1000 | 1062 |
| MCⅡ11210 | 112 | 1110 | 1157 | MCⅡ5620 | 56 | 1100 | 1142 | MCⅡ2840 | 28 | 1080 | 1142 |
| MCⅡ12010 | 120 | 1190 | 1237 | MCⅡ6020 | 60 | 1180 | 1222 | MCⅡ3040 | 30 | 1160 | 1222 |
| MCⅡ12810 | 128 | 1270 | 1317 | MCⅡ6420 | 64 | 1260 | 1302 | MCⅡ3240 | 32 | 1240 | 1302 |
| MCⅡ13610 | 136 | 1350 | 1397 | MCⅡ6820 | 68 | 1340 | 1382 | MCⅡ3440 | 34 | 1320 | 1382 |
| MCⅡ14410 | 144 | 1430 | 1477 | MCⅡ7220 | 72 | 1420 | 1462 | MCⅡ3640 | 36 | 1400 | 1462 |
| MCⅡ15210 | 152 | 1510 | 1557 | MCⅡ7620 | 76 | 1500 | 1542 | MCⅡ3840 | 38 | 1480 | 1542 |
| MCⅡ16010 | 160 | 1590 | 1637 | MCⅡ8020 | 80 | 1580 | 1622 | MCⅡ4040 | 40 | 1560 | 1622 |
| MCⅡ16810 | 168 | 1670 | 1717 | MCⅡ8420 | 84 | 1660 | 1702 | MCⅡ4240 | 42 | 1640 | 1702 |
| ? | ? | ? | ? | MCⅡ8820 | 88 | 1740 | 1782 | MCⅡ4440 | 44 | 1720 | 1782 |
| ? | ? | ? | ? | MCⅡ9220 | 92 | 1820 | 1862 | MCⅡ4640 | 46 | 1800 | 1862 |
| ? | ? | ? | ? | MCⅡ9620 | 96 | 1900 | 1942 | MCⅡ4840 | 48 | 1880 | 1942 |
?
?

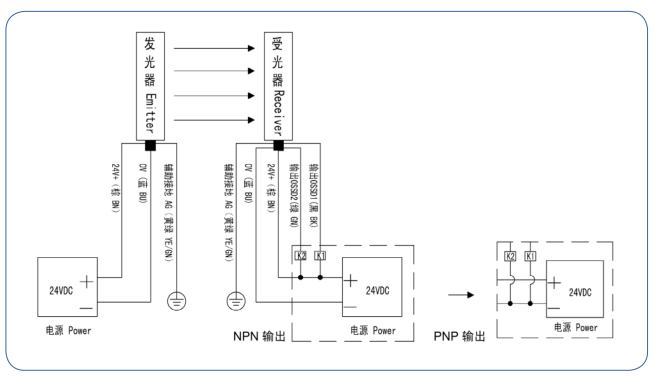

Wiring diagram：

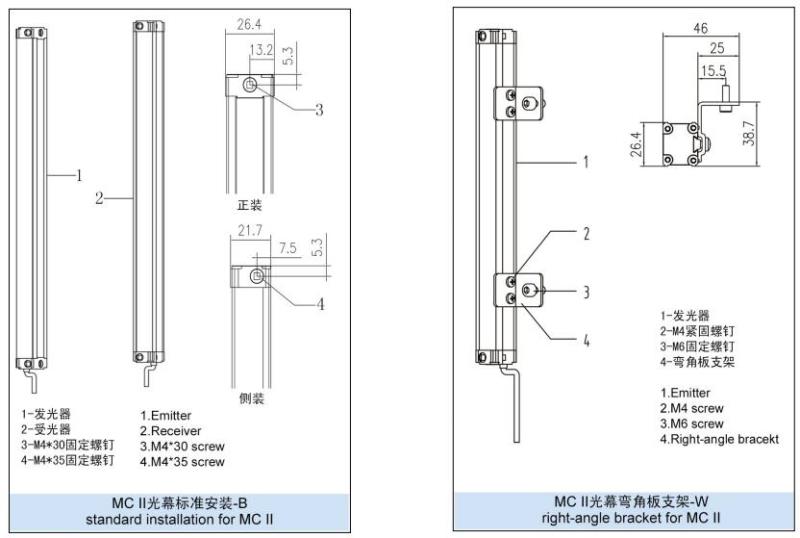

Bracket：
?
